1/2" Copper Air Dielectric RF Coaxial Cable for High-Performance Signal Transmission up to 6 GHz

1/2" Copper Air Dielectric RF Coaxial Cable for High-Performance Signal Transmission up to 6 GHz
1/2" Copper Air Dielectric RF Coaxial Cable for High-Performance Signal Transmission up to 6 GHz
Informasi Dasar
Tempat asal: Ningbo, Shanghai
Nama merek: hellosignal
Nomor model: RF
Kuantitas min Order: 10km
Kemasan rincian: gulungan, kumparan kayu, karton, palet
Waktu pengiriman: Biasanya 25 hari kerja
Harga terbaik Hubungi sekarang
Informasi Detail
Menyoroti:

1/2" RF Coaxial Cable

,

Copper Air Dielectric Cable

,

6 GHz Coaxial Cable

Deskripsi Produk

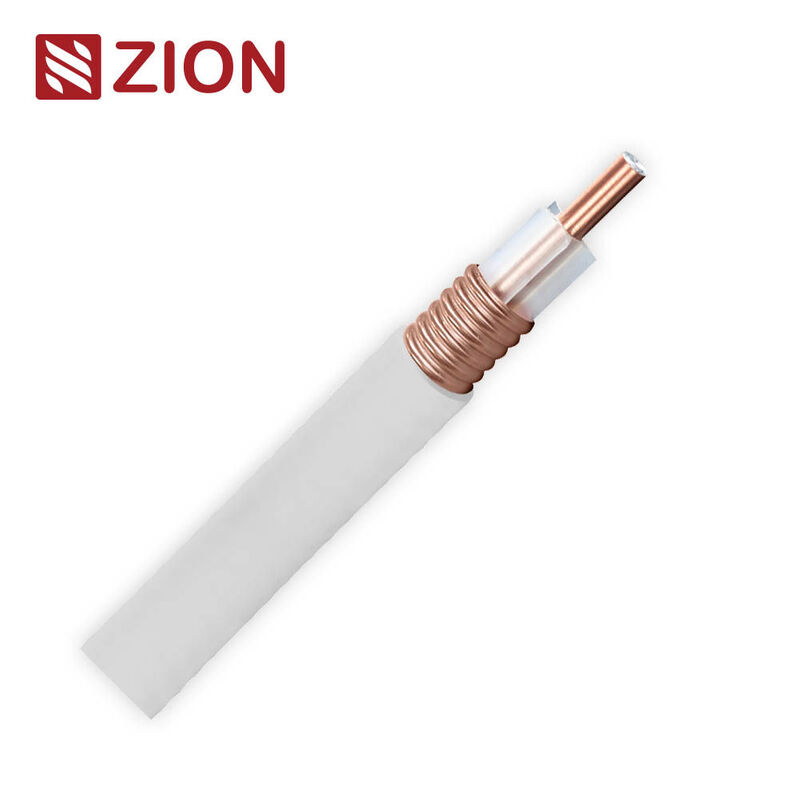

■Product Description

This 1/2" Copper Air Dielectric RF Coaxial Cable is designed for high-performance RF signal transmission in Wireless Communication, TV & Radio Broadcast, HF Defense Systems, Mobile Radio, Cable Solutions, and In-Building DAS applications.
Its corrugated copper outer conductor, low-loss dielectric, and precision impedance control ensure excellent electrical stability across frequencies up to 6 GHz.

■Design Features

Component Material / Specification
Inner conductor Copper Clad Aluminum wire, Ø 4.75 ± 0.05 mm
Insulation Extruded Polyethylene, Ø 11.80 ± 0.20 mm
Outer conductor Corrugated Copper, Ø 13.80 ± 0.15 mm
Jacket PVC, Color White, Ø 15.90 ± 0.20 mm

■Electrical Specifications

Parameter Value
Impedance 50 ± 1 Ω
Relative Velocity of Propagation 0.88
Capacitance 76 pF/m
Maximum Operating Frequency 6 GHz
Peak Power Rating 40 kW
Jacket Spark Test Voltage 8000 Vrms
Inner Conductor DC Resistance ≤ 1.62 Ω/km
Outer Conductor DC Resistance ≤ 1.90 Ω/km

■Environmental Specifications

Condition Temperature Range
Installation -20°C to +60°C
Operating -40°C to +85°C
Storage -40°C to +85°C

■Mechanical Specifications

Parameter Value
Tensile Strength 1120 N
Min. Bending Radius (single) 76 mm
Min. Bending Radius (repeated) 127 mm
Bending Moment 4.1 N·m
Flat Plate Crush Strength 19.2 N/mm

■Standard Conditions

Attenuation, VSWR: measured at ambient temperature 20°C, VSWR = 1.0
Average Power: measured at ambient temperature 40°C, VSWR = 1.0
Average Power (high-temp): Inner Conductor Temperature = 100°C

■VSWR (Voltage Standing Wave Ratio)

Frequency Band VSWR Max
680 MHz – 960 MHz ≤ 1.13
1390 MHz – 1450 MHz ≤ 1.13
1700 MHz – 2200 MHz ≤ 1.13
2300 MHz – 2700 MHz ≤ 1.22
3550 MHz – 4200 MHz ≤ 1.29
5150 MHz – 6000 MHz ≤ 1.29

■Attenuation & Power Handling

Frequency (MHz) Typical Attenuation (dB/100 m) Average Power (kW)
200 3.14 2.3
450 4.84 1.49
800 6.64 1.09
900 7.08 1.02
1500 9.45 0.77
1800 10.5 0.69
2000 11.2 0.65
2200 11.8 0.62
2400 12.4 0.59
2500 12.7 0.59
2700 13.3 0.55
3500 15.5 0.47
4000 16.8 0.44
5000 19.3 0.38
6000 21.6 0.34

■Packing

Packing: 500 m per reel
Reel Size: 75 × 53 × 75 cm

■Certification

Cable complies with relevant international standards for RF coaxial transmission. Certification documentation available upon request.

■Ordering

Part Number Description
7101116 1-2" Air Dielectric PVC CM
7101116R 1-2" Air Dielectric PVC CMR/FT4
7101116P 1-2" Air Dielectric PVC CMP/FT6
