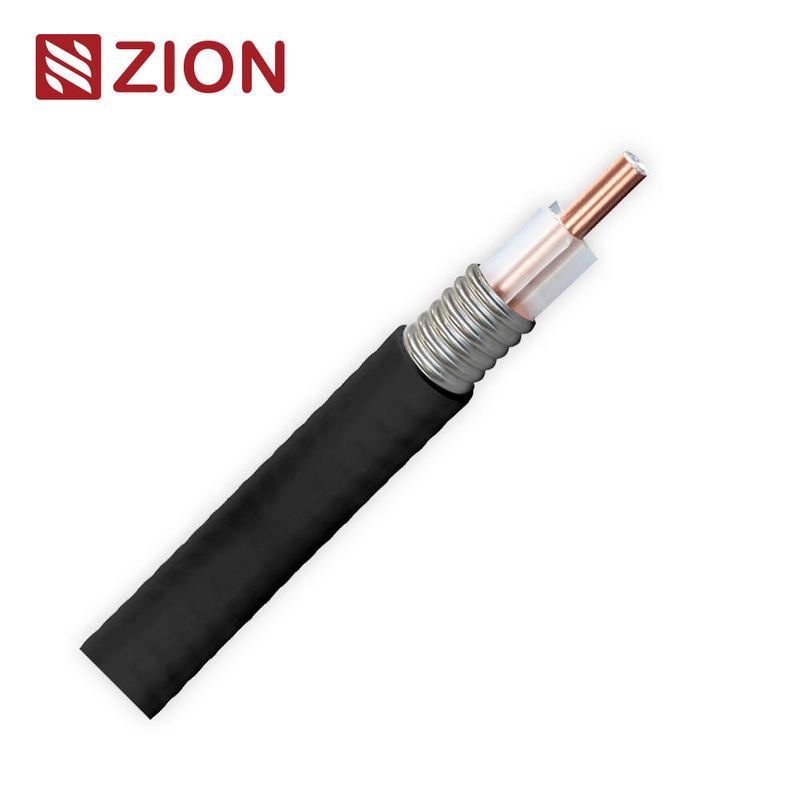

1/2" Aluminum Air Dielectric RF Coaxial Cable for High-Efficiency Transmission up to 6 GHz

1/2" Aluminum Air Dielectric RF Coaxial Cable for High-Efficiency Transmission up to 6 GHz
1/2" Aluminum Air Dielectric RF Coaxial Cable for High-Efficiency Transmission up to 6 GHz
Informasi Dasar
Tempat asal: Ningbo, Shanghai
Nama merek: hellosignal
Nomor model: RF
Kuantitas min Order: 10km
Kemasan rincian: gulungan, kumparan kayu, karton, palet
Waktu pengiriman: Biasanya 25 hari kerja
Harga terbaik Hubungi sekarang
Informasi Detail
Menyoroti:

1/2" RF Coaxial Cable

,

6 GHz Air Dielectric Cable

,

Corrugated Aluminum Coaxial Cable

Deskripsi Produk

■Description

This 1/2" Aluminum Air Dielectric RF Coaxial Cable is engineered for high-efficiency RF transmission in Wireless Communication, TV & Radio Broadcast, HF Defense, Mobile Radio, Cable Solutions, and In-Building DAS systems.
Its precision-formed CCA conductor, corrugated copper outer conductor, and optimized dielectric deliver low attenuation and stable broadband performance up to 6 GHz.

■Design Features

Component Material / Specification
Inner conductor Copper Clad Aluminum wire, Ø 4.75 ± 0.05 mm
Insulation Extruded Polyethylene, Ø 11.80 ± 0.20 mm
Outer conductor
Corrugated Aluminum, Ø 13.80 ± 0.15 mm
Jacket PVC, Color White, Ø 15.90 ± 0.20 mm

■Electrical Specifications

Parameter Value
Impedance 50 ± 2 Ω
Relative Velocity of Propagation 0.88
Capacitance 75 pF/m
Maximum Operating Frequency 6 GHz
Peak Power Rating 40 kW
RF Peak Voltage 2000 Volts
Jacket Spark Test Voltage 8000 Vrms
Inner Conductor DC Resistance ≤ 1.58 Ω/km
Outer Conductor DC Resistance ≤ 2.29 Ω/km

■Environmental Specifications

Condition Temperature Range
Installation -20°C to +60°C
Operating -40°C to +85°C
Storage -40°C to +85°C

■Mechanical Specifications

Parameter Value
Tensile Strength 549 N
Min. Bending Radius (single) 76 mm
Min. Bending Radius (repeated) 127 mm
Bending Moment 5.4 N·m
Flat Plate Crush Strength 12 N/mm

■Standard Conditions

Attenuation, VSWR: measured at ambient temperature 20°C, VSWR = 1.0
Average Power: measured at ambient temperature 40°C, VSWR = 1.0
Average Power (high-temp): Inner Conductor Temperature = 100°C

■VSWR (Voltage Standing Wave Ratio)

Frequency Band VSWR Max
680 MHz – 960 MHz ≤ 1.13
1390 MHz – 1450 MHz ≤ 1.13
1700 MHz – 2200 MHz ≤ 1.13
2300 MHz – 2700 MHz ≤ 1.22
3550 MHz – 4200 MHz ≤ 1.29
5150 MHz – 6000 MHz ≤ 1.29

■Attenuation & Power Handling

Frequency (MHz) Typical Attenuation (dB/100 m) Average Power (kW)
100 2.41 3.18
200 3.46 2.21
450 5.32 1.44
800 7.28 1.06
900 7.76 0.99
1500 10.3 0.75
1800 11.5 0.67
2000 12.2 0.63
2200 12.8 0.61
2400 13.5 0.57
2500 13.8 0.56
2700 14.5 0.54
3500 16.9 0.46
4000 18.3 0.43
5000 20.9 0.38
6000 23.3 0.34

■Packing

Packing: 500 m per reel
Reel Size: 75 × 53 × 75 cm

■Certification

Cable complies with relevant international standards for RF coaxial transmission. Certification documentation available upon request.

■Ordering

Part Number Description
7101117 1-2" Air Aluminum Dielectric PVC CM
7101117R 1-2" Air Aluminum Dielectric PVC CMR/FT4
7101117P 1-2" Air Aluminum Dielectric PVC CMP/FT6
